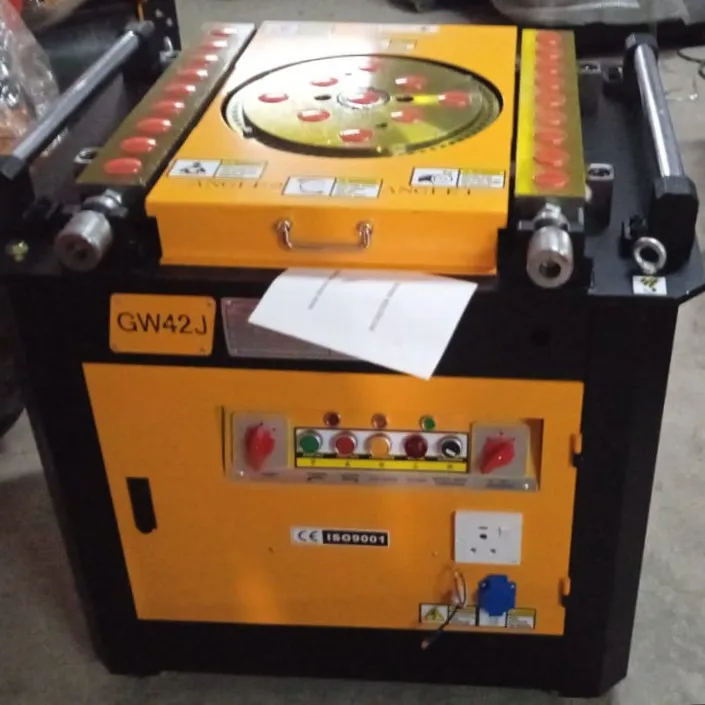

*Bar Bending Machine 42J Whole Dealers in Nagpur, Pune Maharashtra
Specifications
- *Max Bending Capacity*: 32mm TMT bar / rebar
- *Model Number*: GW 42J / GW-42J
- *Power Source*: Electric
- *Voltage*: 415V, 3 Phase
- *Motor Power*: 3kW to 3.7kW / 3.4kW / 5HP variants
- *Motor Speed*: 1400-1440 RPM
- *Bending Speed*: ∼10 RPM or 3-15R/Min, ∼5-10 sec per bend
- *Max Bending Angle*: 180°
- *Max Bending Radius*: 50-100mm / 200-250mm depending on setup
- *Working Plate Size*: 12mm, Working Disc Area: 320mm
- *Machine Dimensions*: ∼850 x 740 x 840mm to 880 x 800 x 850mm
- *Weight*: 320-400 kg
- *Body Material*: MS/Steel
- *Bend Direction*: Clockwise d3a1f56c0879b1d4810c416096dc
Features*
- *Automation Grade*: Available in Semi-Automatic and Automatic
- *Operation*: Foot pedal or push-button with angle selector
- *Safety*: Brake motor, emergency stop, protective covers
- *Application*: Columns, beams, footings, slabs in residential/commercial/infra projects 810cb1d496dcd3a158e2
*Price Range *
- *₹65,000 to ₹75,000* depending on brand, automation, and location
*Popular Brands*
- Ovi Enterprises Wadi Nagpur 440023
-OVI ENTERPRISES PUNE Maharashtra
