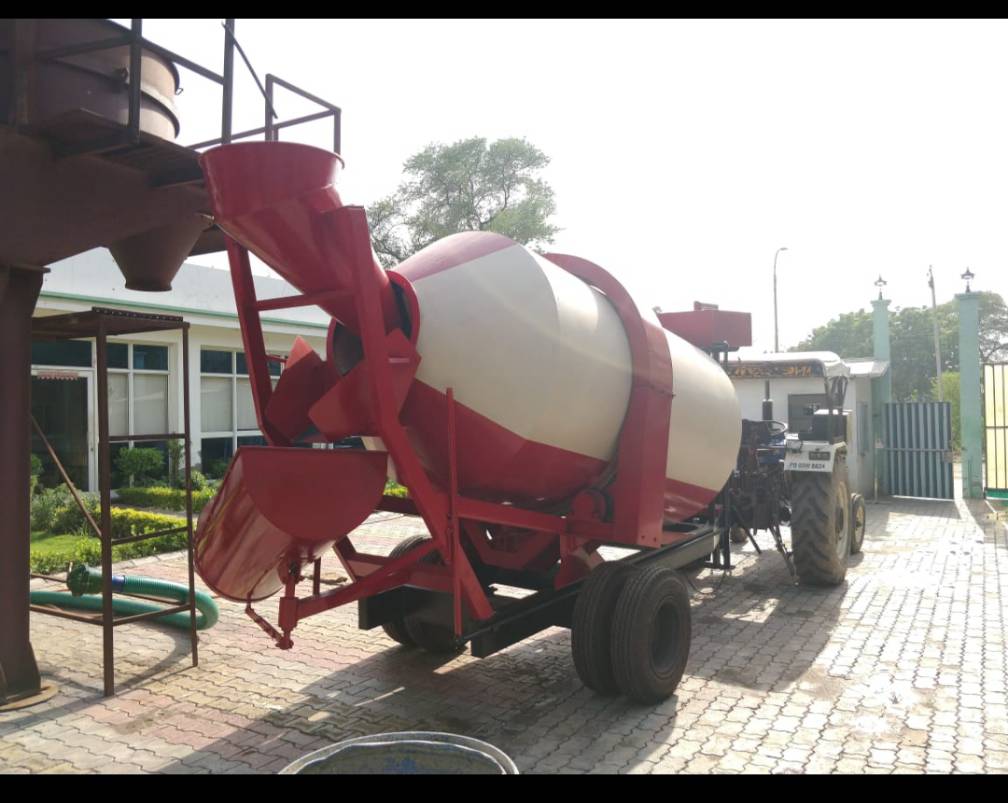

Transit Mixer Tractor Driven Mixer 2 And 4 M3

Drum Mixer:

Main Parts:

-Chassis:Sturdily reinforced chassis

designed to optimize the low center of

gravity, resulting in better stability of the

unit.

-Mixer Unit: Robust mechanical

construction of Reversible Mixer Unit

(including blades) keeps the concrete

uniform.

-Drive:The unit is driven by Power Take-

off (PTO) shaft from the Tractor Unit.

-Gear Box: Refurbished Gear Box of TATA 407: with compact design, that enables to

absorb intense torsion.

-Hydraulics:The unit comes pre-installed

with Dual Heavy Dysfunction

Hydraulic Jack that lifts the whole mixer unit assembly on discharge.

-Geo.Volume of Mixer: 6.8M3(approx.)

-Charging Capacity of Mixer: 3M3‘OR’up to 3.75M3

-Angle of Drum Mixer (with respect to

Chassis & G.L): 15°

-Max. Drum Diameter: O 1600 mm (OD)

-Length of Drum Mixer: 3300 mm (approx.)-Inlet Drum Diameter: O 600 mm

-Drum Mixer MoC: MS Sheet 5, & 6 mm.

-Drum Mixer Blades MoC: MS Sheet 5 mm, & MS Flat 50×10 mm.

Transmission:

-Drum Mixer Speed: 5-8 RPM.

-Feed: PTO Shaft from Tractor.

-Gear Box: Refurbished 5 Speed, 1 Reverse Manual Gear Box from TATA

-Drive Shaft: Retractable MS Square Pipe,

with Universal Cross Joint at either end.

-Drive: Spur Gear Pinion, with Adjustable X & Z Axis.

-Drive: MS Spur Gear Ring(ID: O1610mm)with Tapered Edges for both Power

Transmission, & Guide for the Drum Mixer.

-Guide: Tapered Angular Guide Wheels,

with In-House Make Heavy Duty Brackets

(MoC: MS) to bear intense weight of the

Drum Mixer.

-Guide Wheel MoC: MS EN-8.
